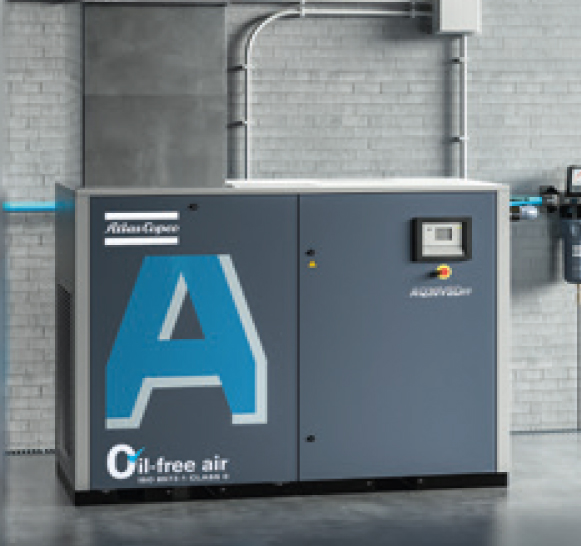

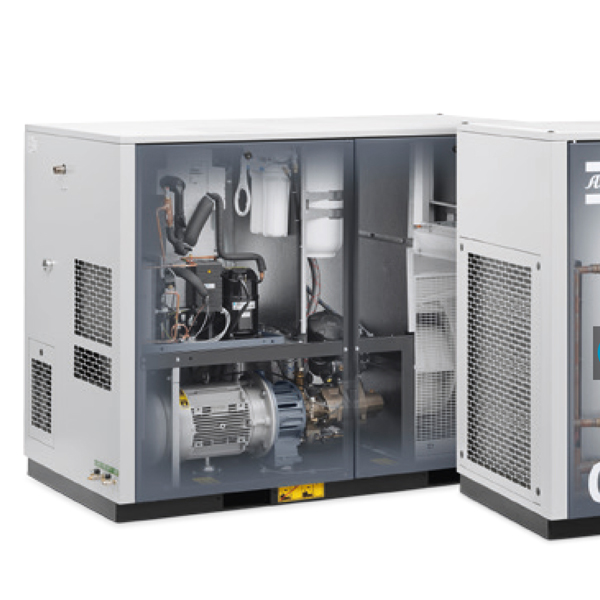

Name:AQ water-injected oil-free screw compressors

Product Description

High efficiency

The superior cooling capability of water ensures that heat is removed efficiently at the source to generate more

air per kW of power

Energy savings

Variable Speed Drive versions offer energy savings of up to 35% by eliminating load/no load transition losses.

Precise pressure control allows a tighter pressure band and a lower average working pressure for reduced energy


Certified 100% oil-free air

AQ compressors provide 100% pure, clean air that meets the ISO 8573-1 CLASS 0 (2010) standard. CLASS 0 means

zero risk of contamination; zero risk of damaged or unsafe products; zero risk of losses from operational downtime; and

zero risk of damaging your company’s reputation

Quiet operation

AQ compressors are supplied in a sound-insulated canopy making them ideal for most working environments. No need

for a separate compressor room

Advanced control and monitoring

The Elektronikon® controls the main drive motor and regulates system pressure within a predefined and narrow pressure


100% safe, high quality air

Enjoy lower operating and maintenance costs with an ISO-8573-1 CLASS 0 (2010) certified compressor. The AQ eliminates

the risk of contamination with 100% oil-free air for applications that require the highest levels of purity like
- medical

- pharmaceutical production
- food production
- critical electronics

The water-injected screw compressors, water-cooled or air-cooled, meet your needs for quality air with high-pressure capability

and energy efficiency.

Adaptable to your specifications

The Elektronikon® controller can be adapted to your specific needs with extra sensors, digital contacts, fieldbus, Internet and SMS communication functions. Optimize the operation of your complete compressor room by using the ES multiple compressor controller.

Read more about our AQ Water-injected oil-free screw compressors

Technical specifications AQ compressor technical specifications

Capacity FAD l/s

21.9 l/s - 161.7 l/s

Capacity FAD

1.3 m³/h - 9.7 m³/h

Working pressure

7.4 bar(e) - 13 bar(e)

Installed motor power

15 kW - 55 kW
